Price
169,52 € excl. VAT (205,12 € incl. VAT)
Manufacturer
Product code
DSR B1-00000-1121

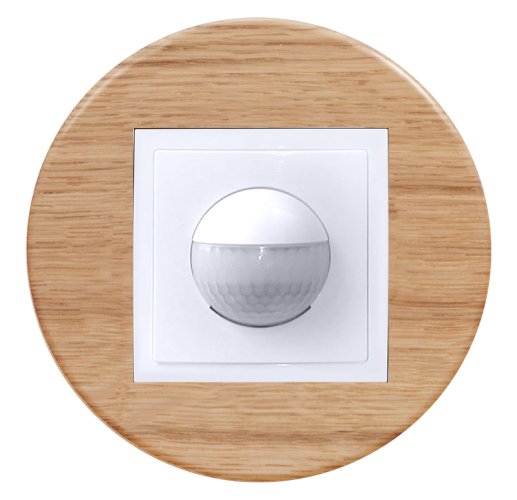

PIR sensor B.E.G., type 180-R, relay version in three-wire technology.
The thermostat is always supplied with a frame - wooden (beech, oak, dark oak, maple) or glass (white, black). More
Description |
Wall-mounted motion detector with acoustic sensor. Relay version in three-wire technology. Automatic extension of transition time through sounds. Possible manual button control. |
Dimensions (h x w x d) | mounting depth 36 mm |
Power |
2300 W, cos ? = 1 1150 W, cos ? = 0,5 |
Voltage | 110 - 240 V AC 50/60 Hz |
Coverage angle | 180° vertically |
Range | max. 10 m |
Twillight setting | 2 - 2000 lux |
Time setting | 15 s - 16 min or bell bell impulse |
Protection | IP 20 / class II |
Parameters
Device type | motion sensors |
---|
